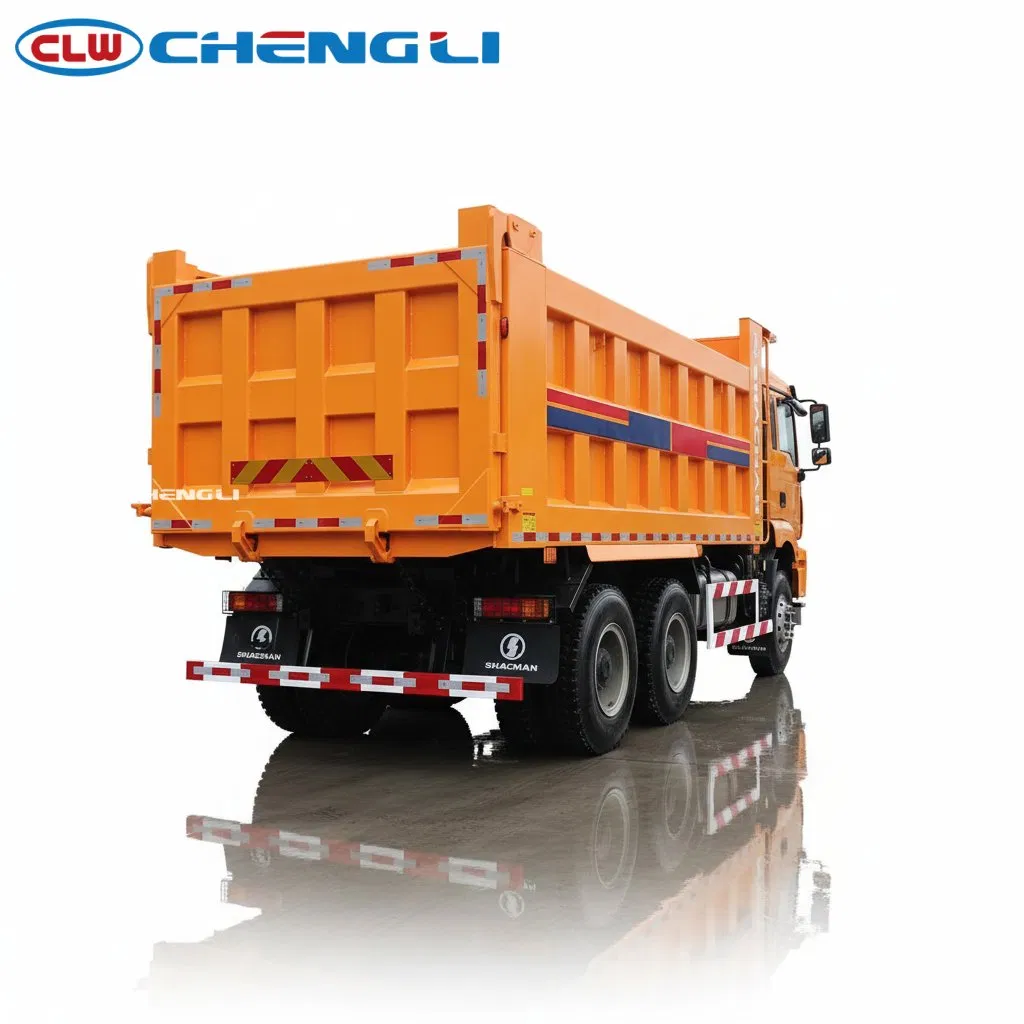

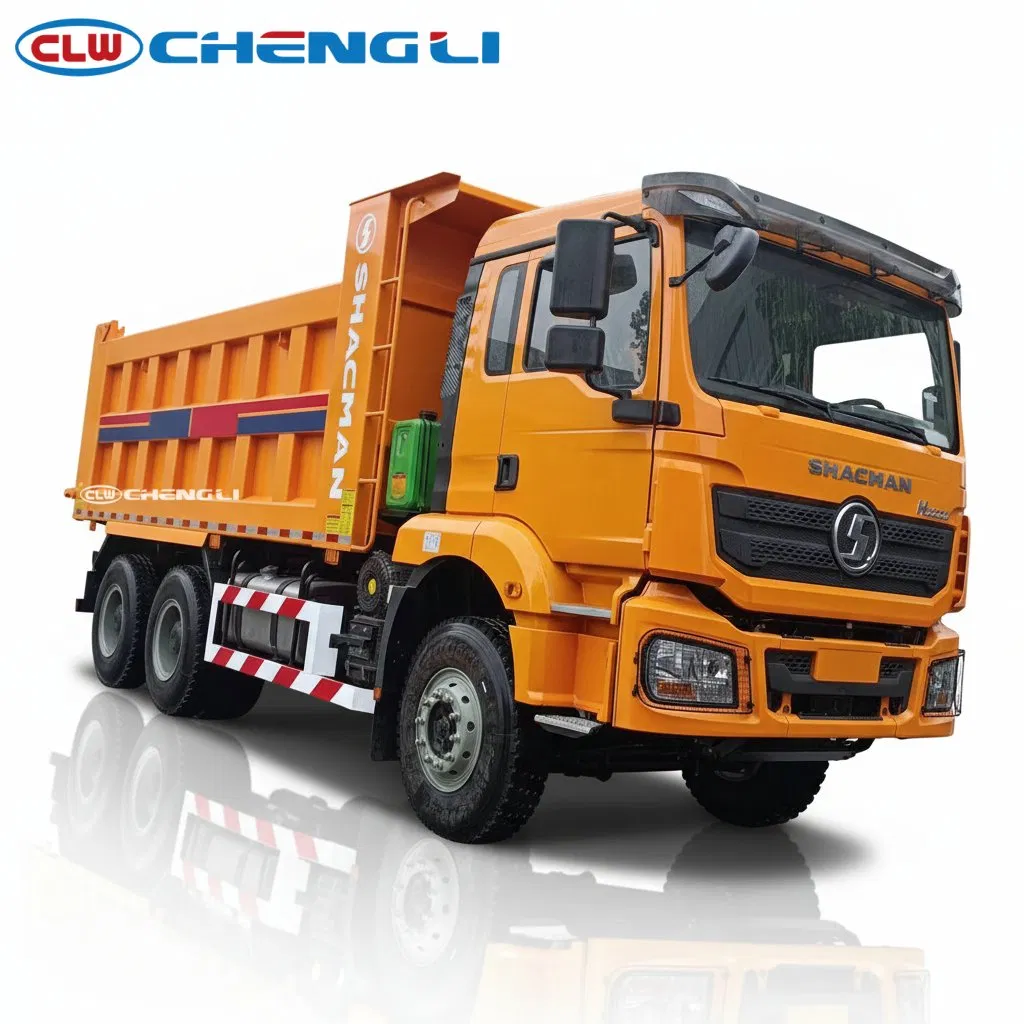

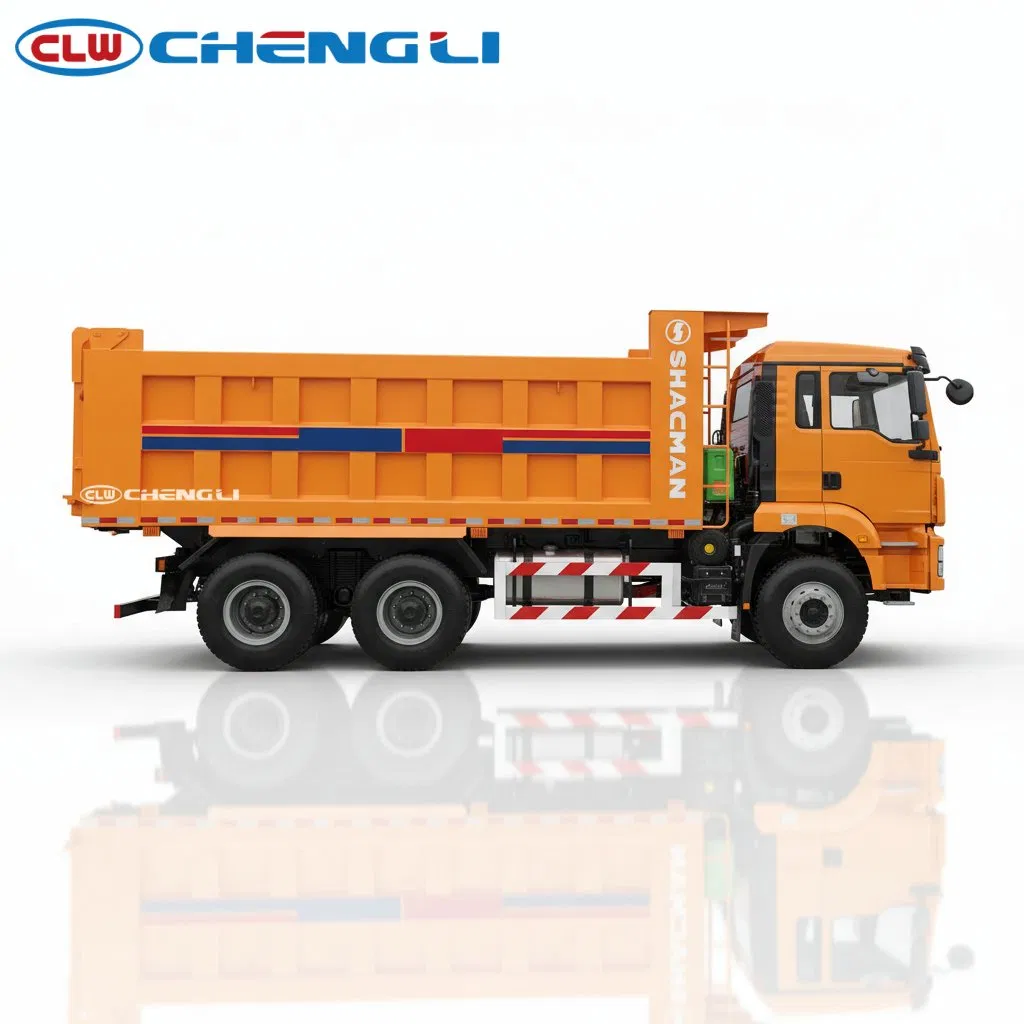

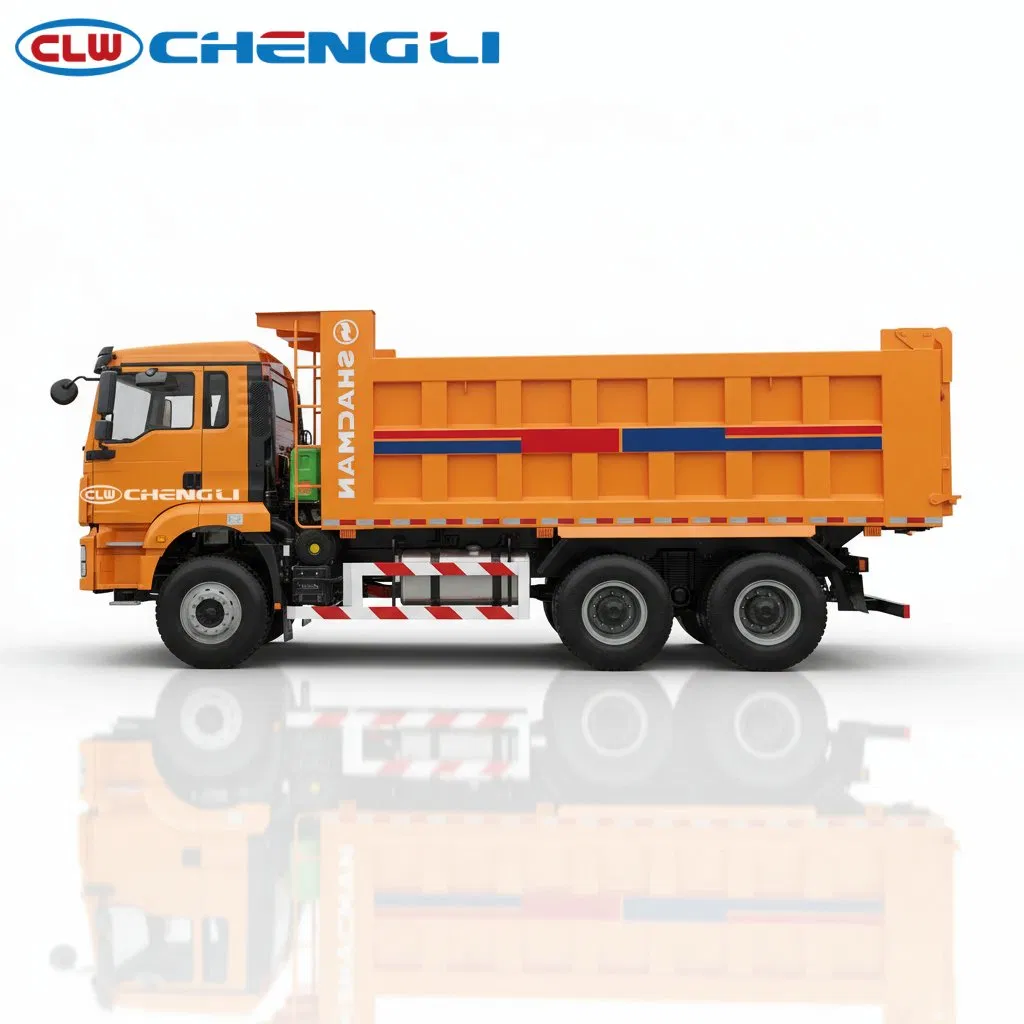

Shacman 6x4 Heavy-Duty Construction Dump Truck for Aggregate and Infrastructure Haulage
The Shacman 6x4 is the construction-site counterpart to our HOWO 8x4 mining tipper: three axles instead of four, the same mining-specified axle hardware and triple-layer frame, sized for aggregate runs on infrastructure projects where a 25-30 t class load and a shorter wheelbase fit mixed on-road and site duty.
Core capabilities in operation
Technical parameters translated into working results. Figures are reference estimates and vary with operating conditions.
| Parameter | Working result | Calculation conditions | Factors that change the result |
|---|---|---|---|
| Payload about 30,000 kg on a 50,000 kg GVW | Roughly 30 t of aggregate per trip when the body volume and material density allow, matching common loading setups. | GVW 50,000 kg minus 20,000 kg curb weight. | Material density, box volume chosen and weighbridge enforcement. |
| 20-30 m3 body with front-lifting hydraulics | Body volume configured to the material: dense aggregates reach weight first, lighter soils use more of the volumetric capacity. | Box dimension finalised per order. | Material density and moisture. |
| Mining-specified axles on a triple-layer frame | Holds up on rutted site roads and loading faces better than highway-specified running gear. | Site roads maintained to haul standard. | Grading frequency, tyres and load distribution. |
| Cummins 351-450 HP band with FAST 12-speed | Engine rating matched to the haul profile at order, keeping loaded climbs and descents controlled. | Engine fit confirmed per order. | Gradient, altitude and gearing. |
Technical specifications
| Manufacturer | CLW (Chengli Special Automobile) |
|---|---|
| Chassis brand | Shacman Shacman 6x4 heavy-duty |
| Drive layout | 6x4 |
| Engine brand | Cummins |
| Engine model | Cummins band, 351-450 HP (confirmed per order) |
| Transmission | FAST 12-gear manual |
| Fuel type | Diesel |
| Wheelbase | 5500 + 1400 mm |
| Gross vehicle weight | 50 000 kg |
| Curb weight | 20 000 kg |
| Rated payload | 30 000 kg |
| Dimensions (L×W×H) | 8 750 × 2 500 × 3 450 mm |
| Maximum speed | 89 km/h |
| Capacity | 20-30 m3 dump body (5,200 x 2,500 x 3,310 mm listed box) |
Body and tank specifications
| Body material | Customised to the material; thickness values confirmed per order |
|---|---|
| Box capacity | 20-30 m3 as configured |
| Dump box dimension | 5,200 x 2,500 x 3,310 mm as listed (7,500 mm overall carriage also quoted; final box confirmed per order) |

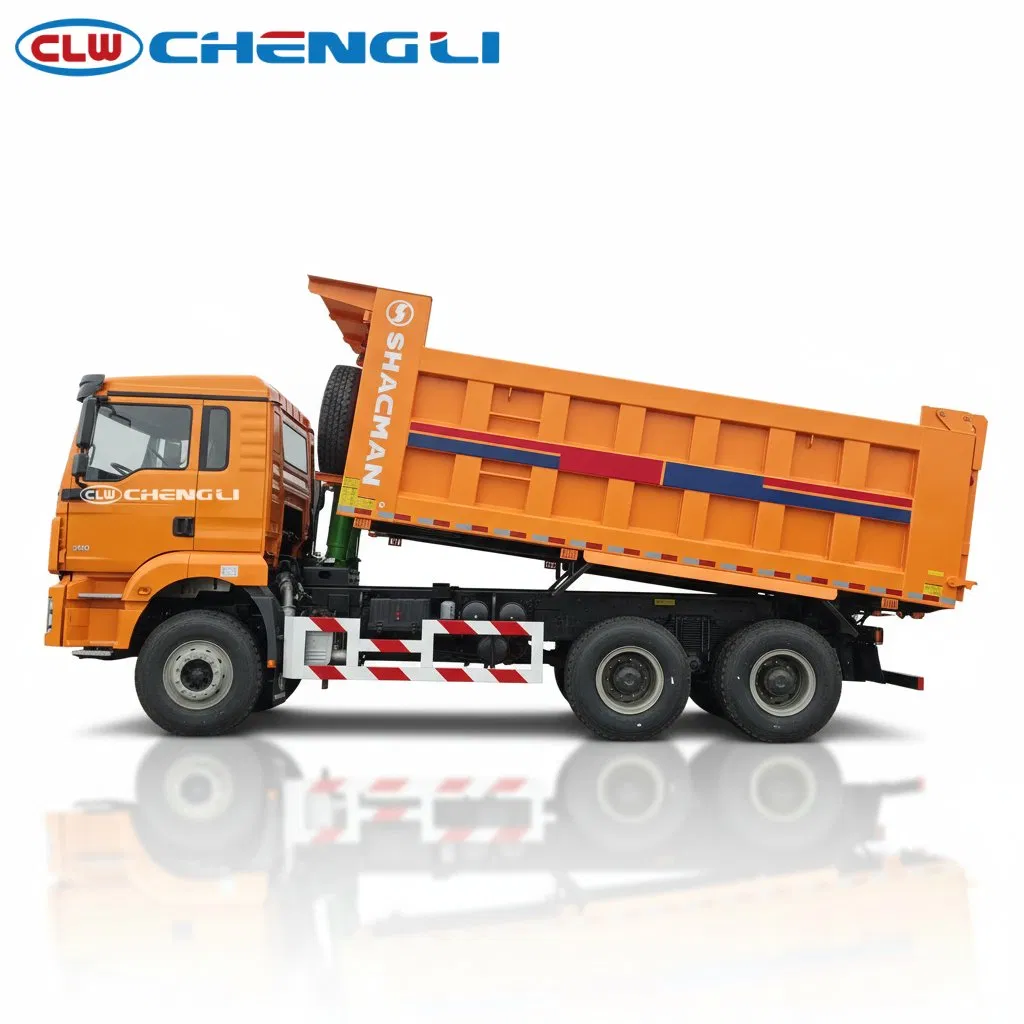

| Dumping type | Front-lifting hydraulic system, 260 mm cylinder (customizable) |
| Tarpaulin | Upon selection |
| Unloading | Side or rear discharge, customized |
Additional chassis specifications
| Axles | Mining-specified front and rear axles |
|---|---|
| Braking | Full air braking; Ruili brake components as listed |
| Cab | Air-suspension seats, single bunk (customizable) |
| Emission note | GB17691-2018 Euro VI listed build; export band confirmed per destination |
| Frame | Straight-through triple-layer reinforced frame |
| Steering | LHD or RHD available |
| Suspension | Leaf springs front and rear; four-point cab suspension |
| Tire specification | 12R22.5 18PR radials |
Working system specifications
| Fuel consumption | About 35 L/100 km listed reference |
|---|---|
| Hydraulic system | Front-mounted tipping cylinder |
Configuration options and trade-offs
- Engine: Cummins 351-450 HP band; confirmed per order
- Body size: 20-30 m3 configured to the material and route
- Discharge: Side or rear discharge per site practice
- Steering: LHD or RHD available
Where this vehicle works well
Suitable conditions
- Infrastructure and construction aggregate haulage
- Quarry-to-crusher and site earthmoving runs
- Mixed on-road and site duty where an 8x4 is oversized
Not recommended for
- Deep-mine haulage better served by the 8x4 mining tipper
- Fine or flowing materials without side boards or a sealed body
Delivery and shipping
| Shipping methods | RORO: Roll-on/roll-off shipping to Lagos · Flat rack: Container flat rack for shared shipments |
|---|---|
| Destination port notes | Common delivery ports for Nigerian orders include Lagos Apapa and Tin Can; the final shipping plan is confirmed with the quotation. |
Frequently asked questions
How much can it carry per trip?
About 30,000 kg on the 50,000 kg GVW; volumetrically that is roughly 18-20 m3 of gravel, with lighter materials using more of the 20-30 m3 body.
How is it different from the HOWO 8x4 mining tipper?
The 6x4 runs three axles with a shorter wheelbase for mixed on-road and site duty; the 8x4 mining build carries the heaviest deep-mine loads with four axles.
What engine powers it?
A Cummins engine in the 351-450 HP band with a FAST 12-speed gearbox; the exact rating is confirmed per order against the haul profile.
Can the body be customised?
Body dimension, material thickness and side or rear discharge are configured per order; a tarpaulin is optional.
Is it suitable for Nigerian construction sites?
The mining-specified axles, triple-layer frame and leaf suspension are specified for rutted site roads; confirm route weight limits for the 50 t GVW.
Three axles for mixed construction duty
Infrastructure haulage rarely stays inside one fence: trucks run public roads to the site, then graded dirt inside it. The Shacman 6x4 is built for that mix — the mining-specified axle hardware and triple-layer frame of our heavy tippers, on a shorter three-axle wheelbase that keeps the truck manageable on carriageways.
Body size, discharge direction and the Cummins engine rating are configured per order against the material and haul profile. Request a quotation with your material, volumes and destination port.
Verification and support
Vehicle data on this page is mapped from the manufacturer's product centre. Tank material, emission standard and compartment layout are confirmed per order; final specifications, documentation and certification are subject to the technical agreement and destination-market requirements.
