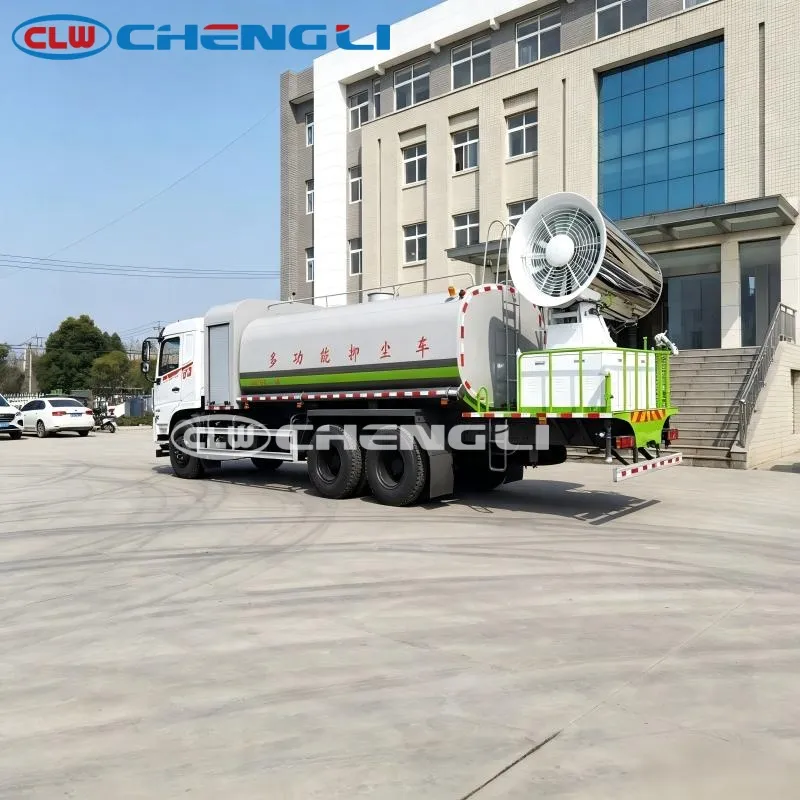

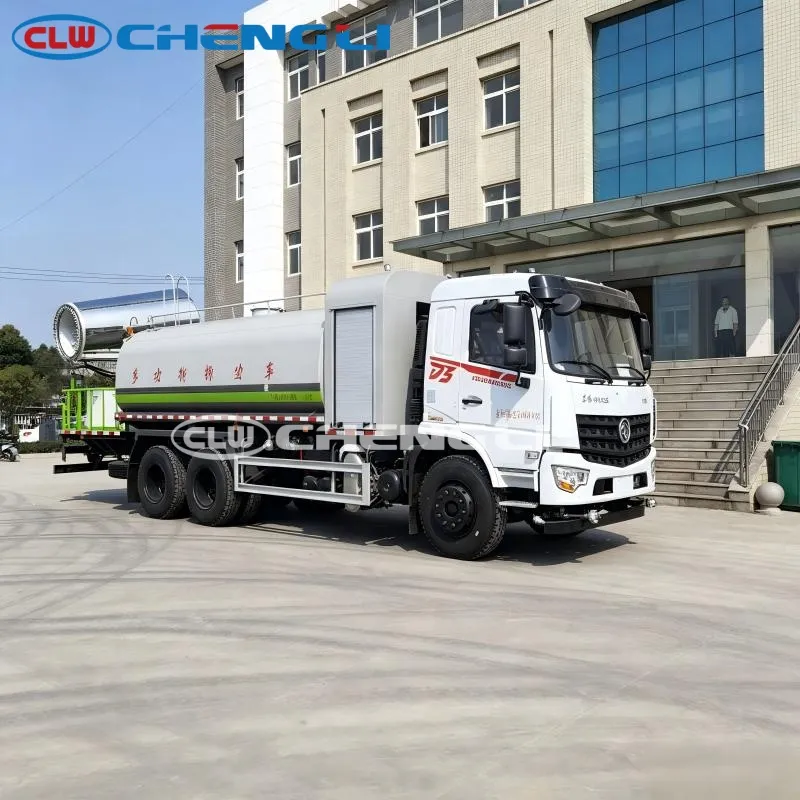

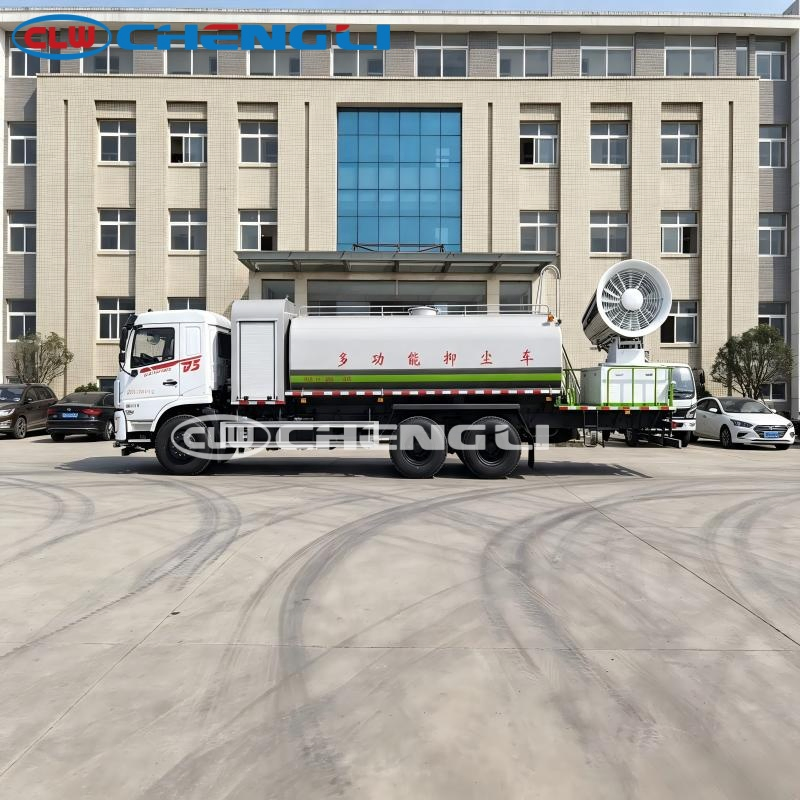

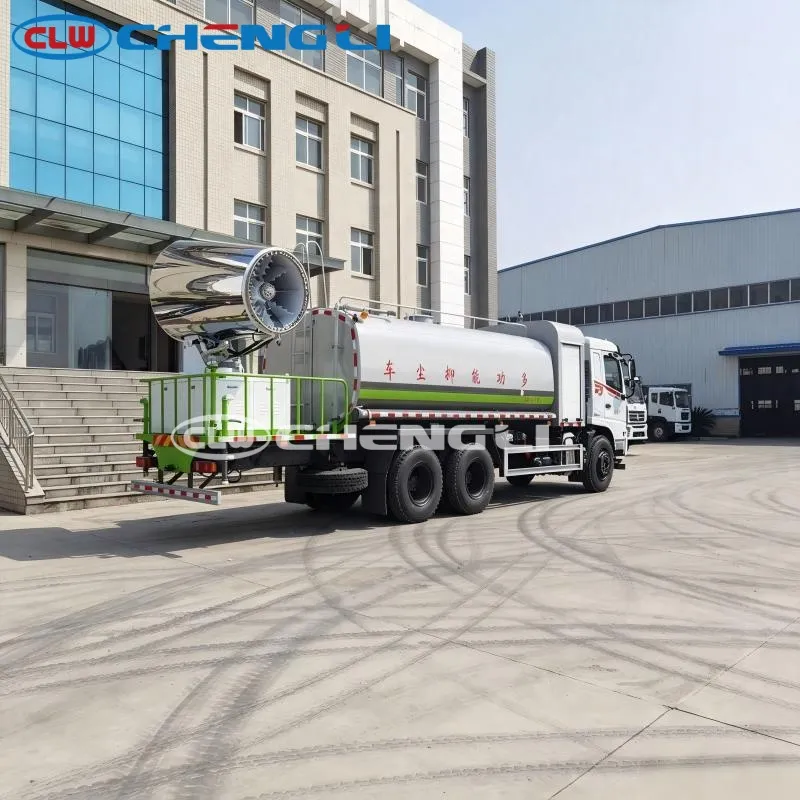

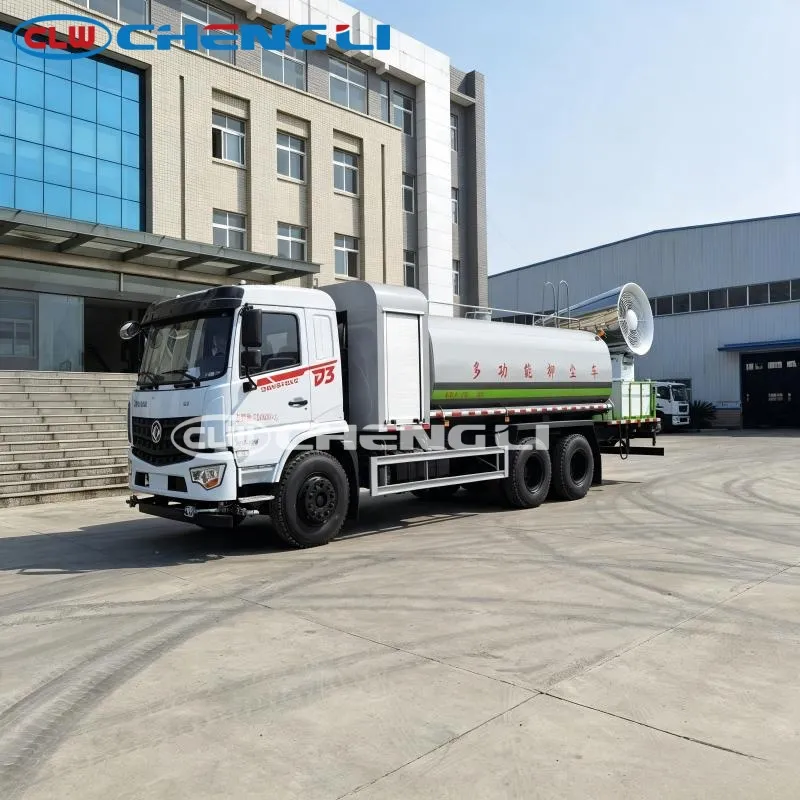

Dongfeng 17,000 Litres 6x4 Dust Suppression Water Bowser Truck with Fog Cannon for Mining Roads
Where our 12 m3 bowser washes urban roads, this 6x4 build fights dust where it is heaviest: mining haul roads, quarry faces and material yards. The 17 m3 Q235 tank feeds an optional WF-series fog cannon that throws mist across working areas, cutting water use against plain spraying on sites that run all day.
Core capabilities in operation
Technical parameters translated into working results. Figures are reference estimates and vary with operating conditions.
| Parameter | Working result | Calculation conditions | Factors that change the result |
|---|---|---|---|
| 17 m3 tank on a 25 t GVW 6x4 | About 12,370 kg of water legally per fill, sized for long suppression rounds between refills on large sites. | GVW 25,000 kg minus 12,500 kg curb weight; water at 1.0 kg/L. | Cannon duty cycle, spray pattern and haul distance to the refill point. |
| Optional WF-60/80/100 fog cannon | Mist cannon coverage throws water across haul roads and stockpiles at a fraction of the flow rate of plain spraying, extending each tank across the shift. | Cannon option selected at order; WF series as listed. | Wind, particle size and cannon mounting. |
| 12-16 m sprinkling width | Standard spray bars cover a dual-lane haul road in one pass for road-wetting duty between cannon tasks. | Standard side spray bars at working pressure. | Pressure, nozzles and road speed. |
| 6x4 with 23/15 degree angles | The three-axle platform and approach/departure angles handle rutted mine haul roads better than 4x2 bowsers. | Site roads maintained to haul standard. | Gradient, surface and tyre condition. |
Technical specifications
| Manufacturer | CLW (Chengli Special Automobile) |
|---|---|
| Chassis brand | Dongfeng 6x4 water truck chassis |
| Drive layout | 6x4 |
| Engine model | 244 HP (180 kW) as listed |
| Fuel type | Diesel |
| Wheelbase | 4350 + 1350 mm |
| Gross vehicle weight | 25 000 kg |
| Curb weight | 12 500 kg |
| Rated payload | 12 370 kg |
| Dimensions (L×W×H) | 10 640 × 2 500 × 3 800 mm |
| Maximum speed | 89 km/h |
| Capacity | 17,000 litres (17 m3 Q235 tank) |
Body and tank specifications
| Sprinkling area | 12-16 m |
|---|---|
| Tank capacity | 17 m3 |
| Tank material | Q235 carbon steel |
Additional chassis specifications
| Approach departure angle | 23 / 15 degrees |
|---|---|
| Axle load | 7,000 / 18,000 kg |
| Front rear overhang | 1,440 / 3,500 mm |
| Seating capacity | 3 |
| Tire specification | 11.00R20 18PR, 10 tyres |
Working system specifications
| Application | Mining haul-road dust control, construction-site suppression and bulk-material yard spraying |
|---|---|

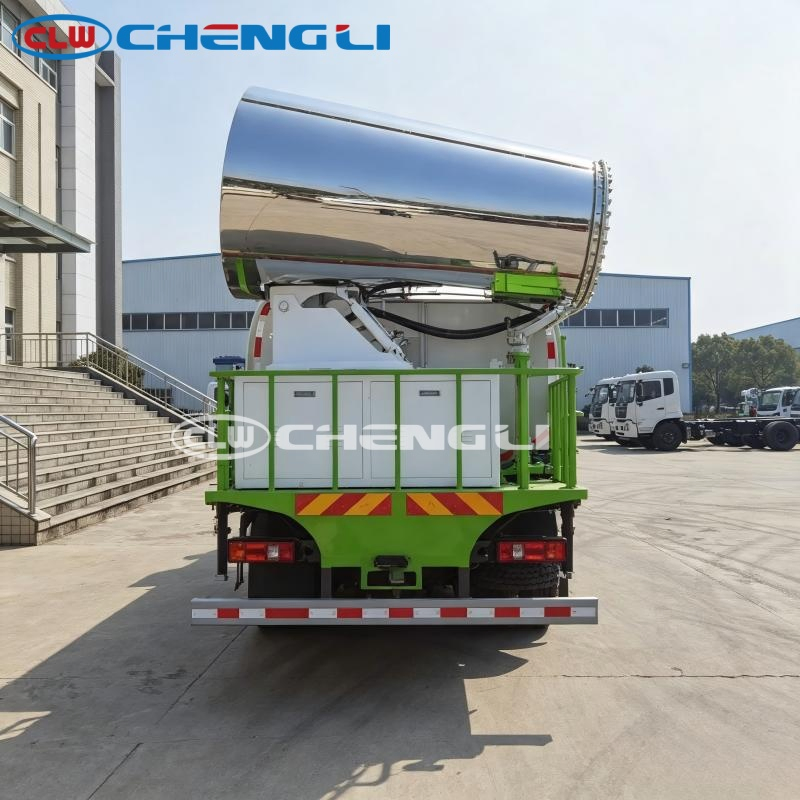

| Fog cannon | Optional WF-60 / WF-80 / WF-100 mist cannon |
Configuration options and trade-offs
- Fog cannon: WF-60 / WF-80 / WF-100 options selected per site size
- Engine: 244 HP as listed; description references up to 330 HP builds confirmed per order
- Emission standard: Euro 2 to Euro 6 band; confirmed per destination
Where this vehicle works well
Suitable conditions
- Mining and quarry haul-road dust suppression
- Construction sites and bulk-material yards
- Heavy-duty water transfer on industrial sites
Not recommended for
- Urban road-washing rounds where the 4x2 12 m3 bowser is more economical
- Drinking-water supply without food-grade certification
Delivery and shipping
| Shipping methods | RORO: Roll-on/roll-off shipping to Lagos · Flat rack: Container flat rack for shared shipments |
|---|---|
| Destination port notes | Common delivery ports for Nigerian orders include Lagos Apapa and Tin Can; the final shipping plan is confirmed with the quotation. |
Frequently asked questions
How much water does it carry legally?
About 12,370 kg on the 25 t GVW chassis, so the 17 m3 tank is normally filled to roughly 12,000 litres to stay within the legal weight.
What does the fog cannon do?
The optional WF-series mist cannon throws fine water droplets across haul roads and stockpiles, suppressing dust at a much lower water rate than plain spraying and extending each tank across a shift.
Which cannon size should I choose?
WF-60, WF-80 and WF-100 options trade reach and flow against cost; the choice follows the size of the roads or yards being treated.
Can it wash roads as well as suppress dust?
Yes, standard side spray bars cover 12-16 m for road-wetting duty between cannon tasks.
Why a 6x4 for dust work?
Mine and quarry roads are rutted and graded unevenly; the three-axle platform with 23/15 degree approach and departure angles handles them better than a 4x2 bowser.
Dust is a haul-road problem, not a street problem
Urban bowser duty and mine-site suppression are different jobs. This 6x4 build is configured for the second: a 17 m3 Q235 tank, an optional WF-series fog cannon that stretches each fill across a whole shift, and a three-axle chassis with the angles for graded quarry roads. Where plain spray bars wash streets, mist cannons treat the dust at source on haul roads and stockpiles.
Cannon size, engine band and spray configuration are confirmed per order against the site plan. Request a quotation with your area per shift and destination port.
Verification and support
Vehicle data on this page is mapped from the manufacturer's product centre. Tank material, emission standard and compartment layout are confirmed per order; final specifications, documentation and certification are subject to the technical agreement and destination-market requirements.
