Water Bowsers · Shacman L3000 4x2 water bowser

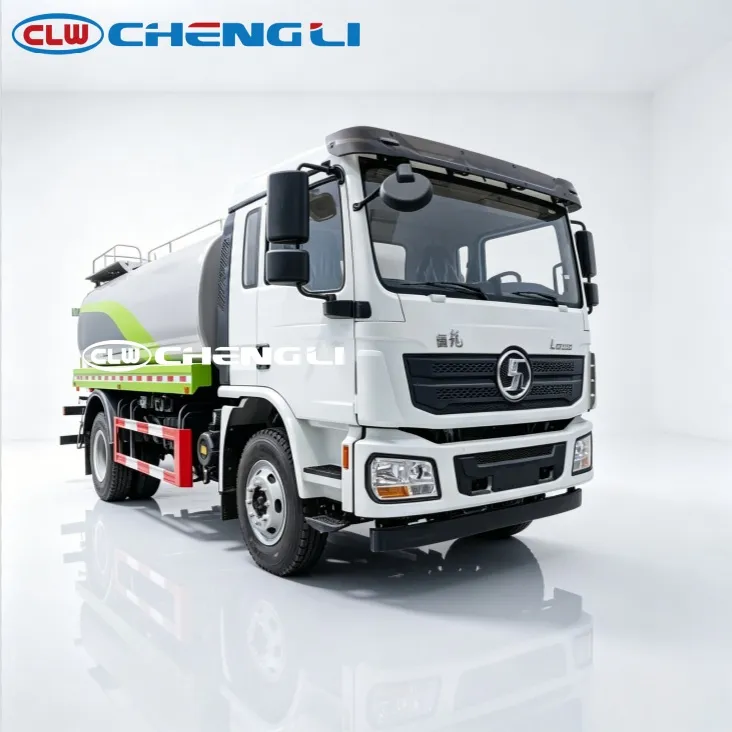

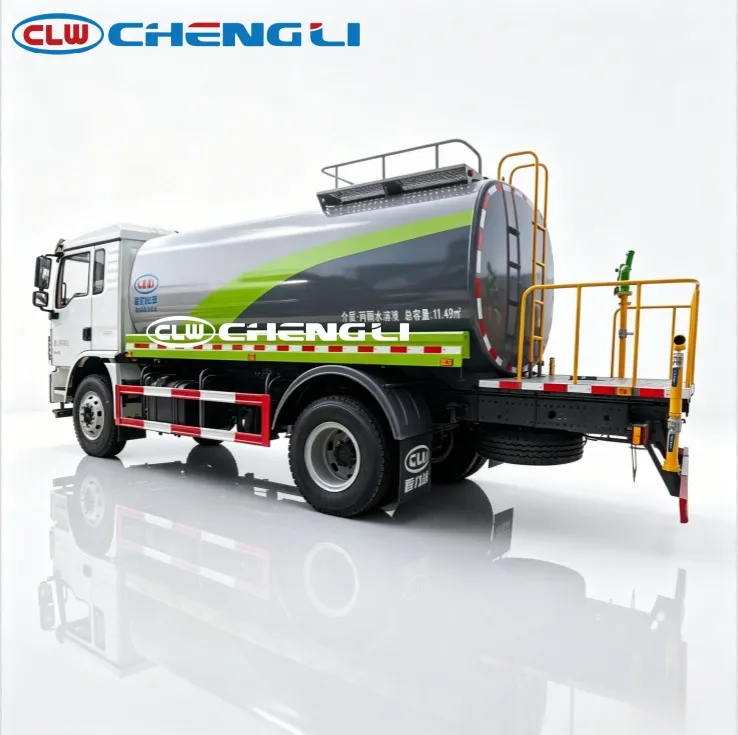

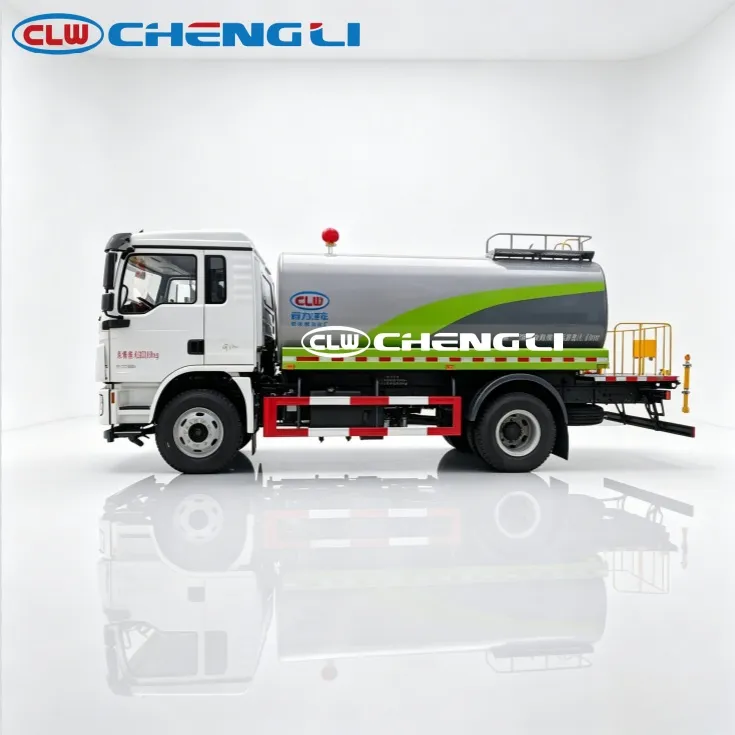

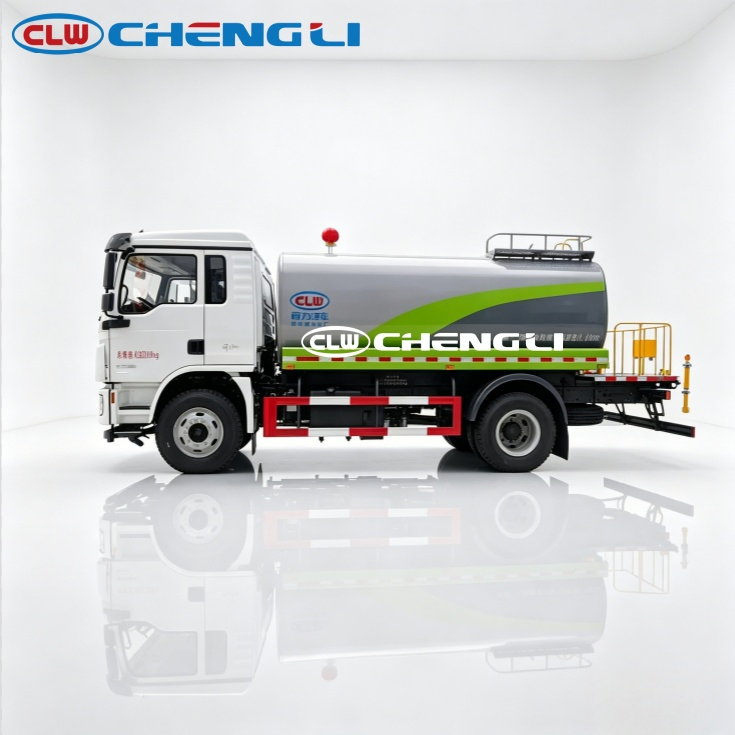

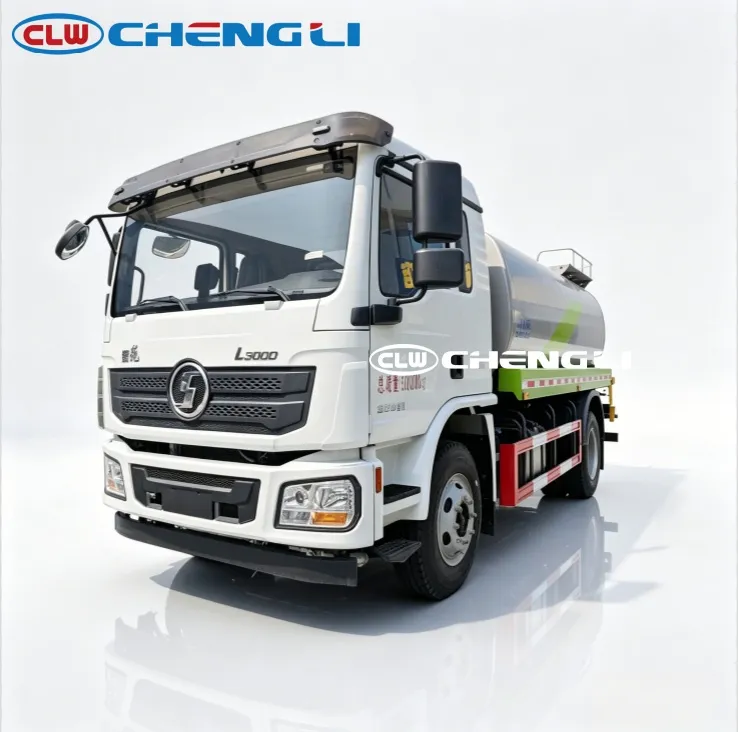

Shacman Delong L3000 14,000 Litres 4x2 Water Bowser Truck for Urban Road Washing
The Shacman Delong L3000 brings a second chassis brand to the urban bowser line: a 14 m3 tank on an 18 t GVW 4x2 with a 10-speed gearbox, sized for daily arterial and viaduct washing rounds where the Dongfeng 12 m3 bowser already serves and a heavier 6x4 build is unnecessary.
Core capabilities in operation
Technical parameters translated into working results. Figures are reference estimates and vary with operating conditions.
| Parameter | Working result | Calculation conditions | Factors that change the result |
|---|---|---|---|
| 14 m3 tank on an 18 t GVW 4x2 | About 10,400 kg of water legally per fill, covering long arterial washing rounds between refills. | GVW 18,000 kg minus 7,400 kg curb weight; water at 1.0 kg/L. | Spray pattern, pump duty and refill spacing. |
| Arterial-class spraying kit | Front flush, side bars and rear cannon configurations cover carriageway washing, square cleaning and dust suppression with one vehicle. | Spraying configuration confirmed per order. | Nozzle selection and pressure. |
| 10-speed gearbox on the L3000 platform | Keeps pump-taking and road speeds matched across urban and link-road duty cycles. | Transmission as listed. | Route profile and duty cycle. |
| 4x2 with 18/11 degree angles | Handles ramps and viaduct transitions on urban routes while staying easy to place in city traffic. | Paved urban routes. | Gradient and turning space. |
Technical specifications
| Manufacturer | CLW (Chengli Special Automobile) |
|---|---|
| Chassis brand | Shacman Delong L3000 4x2 |
| Drive layout | 4x2 |
| Engine model | 150-250 HP band (confirmed per order) |
| Transmission | 10-speed manual |
| Fuel type | Diesel |
| Wheelbase | 4000 mm |
| Gross vehicle weight | 18 000 kg |
| Curb weight | 7 400 kg |
| Rated payload | 10 405 kg |
| Dimensions (L×W×H) | 8 560 × 2 520 × 3 250 mm |
| Maximum speed | 89 km/h |
| Capacity | 14,000 litres (14 m3 Q235 carbon steel tank) |
Body and tank specifications
| Paint | Anti-corrosion, waterproof coating |
|---|---|
| Tank capacity | 14,000 L |
| Tank material | Q235 carbon steel, anti-rust treated |
Additional chassis specifications
| Approach departure angle | 18 / 11 degrees |
|---|---|
| Axle load | 6,500 / 11,500 kg |
| Front rear overhang | 1,340 / 2,560 mm |
| Leaf springs | Multi-leaf suspension |
| Tire specification | 10.00R20 18PR |
Working system specifications
| Application | Arterial road washing, viaduct and square cleaning, dust suppression and cooling |
|---|---|
| Spraying | Front flush, side spray bars and rear cannon configurations per order |
Configuration options and trade-offs
- Spray configuration: Front flush, side bars and rear cannon per order
- Engine: 150-250 HP band; confirmed per order
- Emission standard: Euro 2 to Euro 6 band; confirmed per destination
Where this vehicle works well
Suitable conditions
- Daily arterial, viaduct and square washing programmes
- Urban dust suppression and cooling rounds
- Landscape and greening watering
Not recommended for
- Mine and quarry haul-road duty better served by the 6x4 fog-cannon build
- Drinking-water supply without food-grade certification
Delivery and shipping
| Shipping methods | RORO: Roll-on/roll-off shipping to Lagos · Flat rack: Container flat rack for shared shipments |
|---|---|
| Destination port notes | Common delivery ports for Nigerian orders include Lagos Apapa and Tin Can; the final shipping plan is confirmed with the quotation. |
Frequently asked questions
How much water does it carry legally?
About 10,405 kg on the 18 t GVW chassis; the 14 m3 tank is normally filled to roughly 10,000 litres to stay within the legal weight.
What routes suit it best?
Daily arterial and viaduct washing, squares, airport access roads and dust suppression — the paved urban duty the L3000 platform is built for.
How does it differ from the Dongfeng 12 m3 bowser?
Same class of duty with a larger 14 m3 tank on the Shacman platform; fleets standardising on Shacman dealer support can run it alongside the Dongfeng without changing parts logistics.
Can it suppress dust on mine roads?
For heavy haul-road dust, the 6x4 fog-cannon build is the right tool; this 4x2 serves paved urban and industrial estate roads.
What spraying equipment is fitted?
Front flush, side spray bars and a rear cannon configuration confirmed per order, with pump sizing matched to the programme.
A second brand for arterial washing fleets
Municipal washing programmes rarely run one truck; they run a fleet with one parts channel. The Delong L3000 gives arterial-duty fleets a 14 m3 bowser on the Shacman platform — the same daily carriageway, viaduct and square work as the Dongfeng build, with dealer support that matches an existing Shacman sanitation fleet.
Spray configuration, engine band and emission standard are confirmed per order. Request a quotation with your road programme and destination port.
Verification and support
Vehicle data on this page is mapped from the manufacturer's product centre. Tank material, emission standard and compartment layout are confirmed per order; final specifications, documentation and certification are subject to the technical agreement and destination-market requirements.
